Colt Service Model Ace .22 LR - Parts Identification

Component Parts of Colt Service Model Ace .22 LR

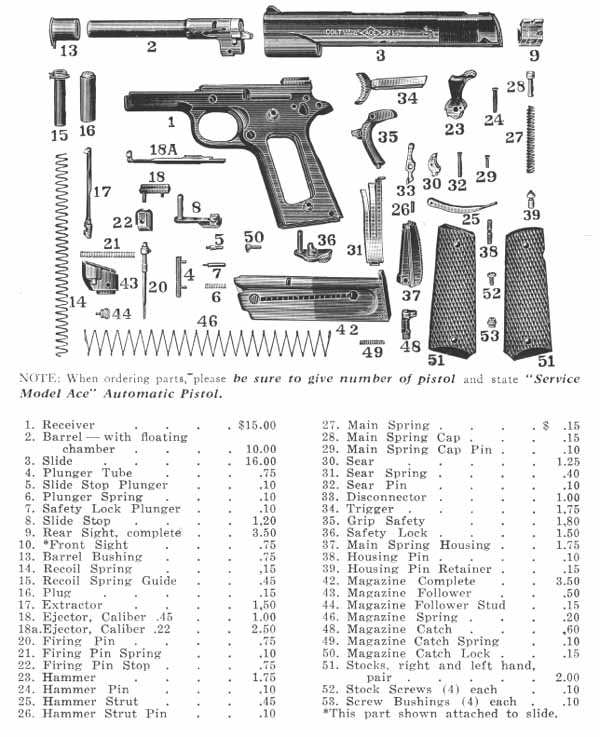

Service Model Ace parts diagram from instruction sheet accompanying Service Model Ace SM 1997 showing horizontal cut with four peen marks to allow for wire retainer to hold ejector in place.  See photos of Service Model Ace SM 2966 for an example of this part.

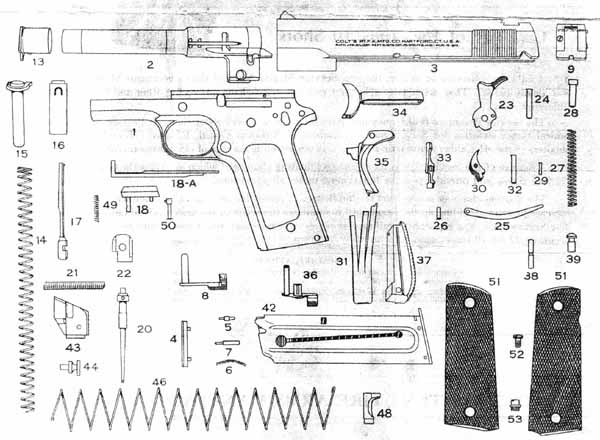

Service Model Ace Parts ca. 1941
